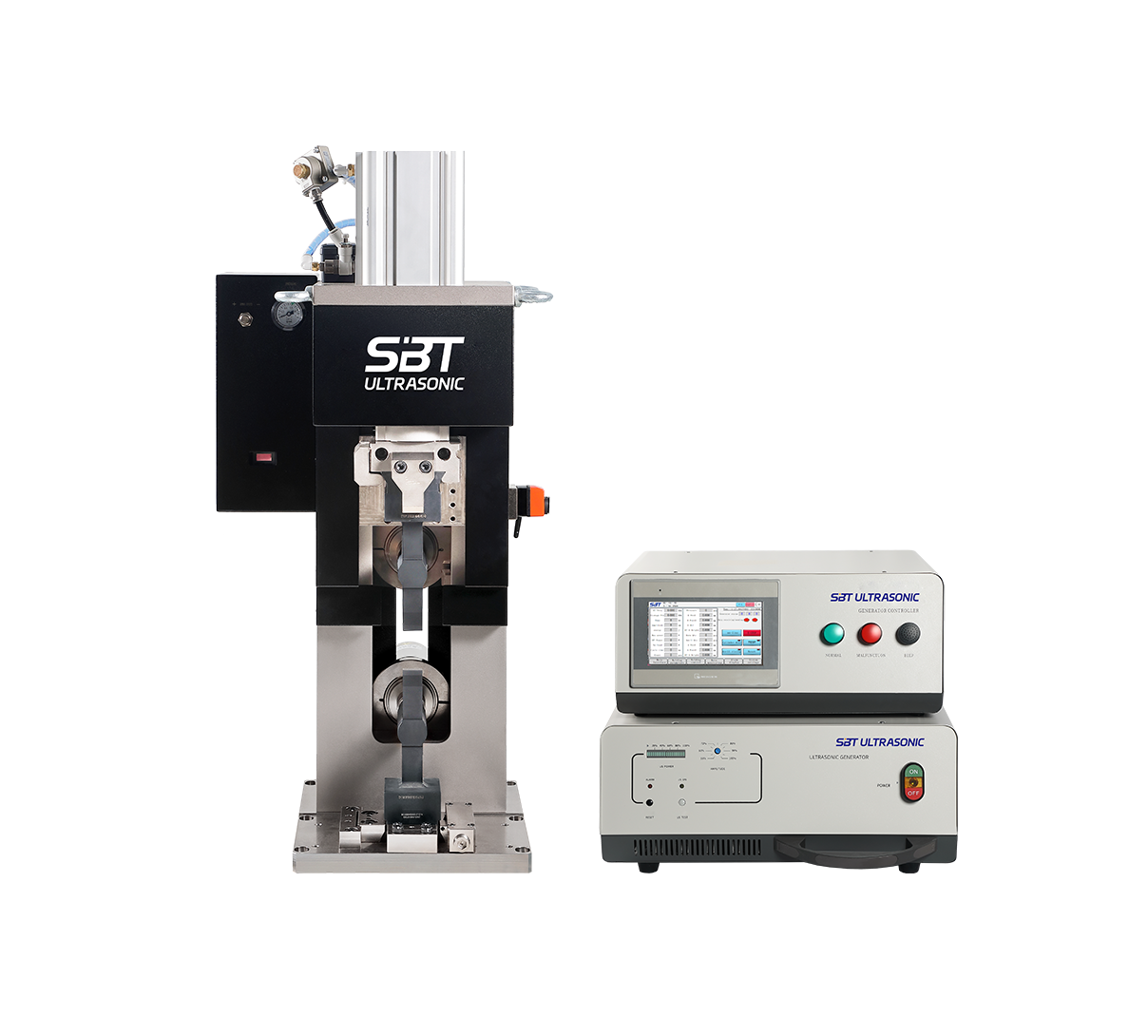

Double Drive Ultrasonic Welder WED
Application
Multi-layer, thicker and larger welding area
Prismatic cell and pouch cell tab welding
Wire harness welding

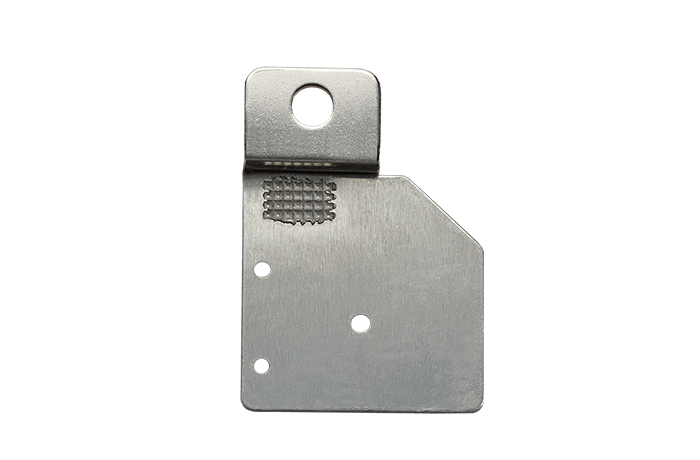

Copper sheet or aluminum sheet welding
Features
Tapered bar vertical welding mode
Fully digital ultrasonic system
Simultaneous ultrasonic emission from two soldering heads
Customizable welding horn and anvil tooling
Accurate welding positioning
Easy and safe operation
Optional welding quality online mo
Technical Parameter
Model
2MS-WED Series
Frequency
20kHz
Rated Power
10-14kW
Transducer Power
14-16kW
Welding Pressure
≤7300N
Amplitude
≤65μm
Interact
Serial/Ethernet
NG Signal
I/O
Weight
250kg
Welding Mode
Time/Energy
